MV5 T0

Data Matrix CodeDot peen markingBenchtop

More power at the workplace

Ideal for high quantities of smaller workpieces

Videos

Sample markings

Downloads

Product details

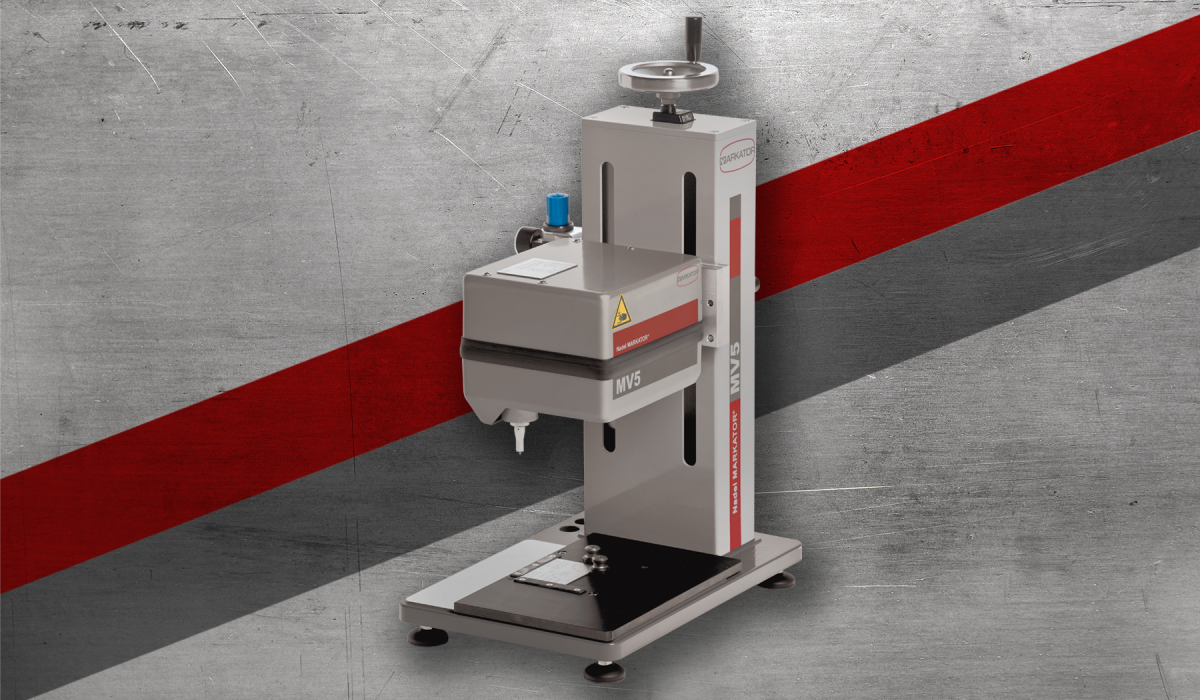

The benchtop marking system MV5 T0 is characterized by its reliability in industrial 3-shift operation. The dot peen marker is standard equipped with a high-quality marking tool - consisting of a solid carbide marking pin and a maintenance-free stylus. Due to high-quality guides in combination with self-lubricating bearings, the marking head is maintenance-free and offers optimum wear properties. The marking area can be illuminated with an energy-saving LED-lighting rail.

ROBUST

  • Adjustable marking strength through pneumatic tool drive
  • Optional impact valve for maximum marking depth
  • Maximum stability of the machine table due to two solid guides
  • High functionality through modular MARKATOR design system

PRECISION

  • Highest marking quality of the marking system through stable mechanics
  • Distortion-free marking result due to optimum power transmission on the workpiece to be marked
  • Long cranking of the column frame is avoided by the smooth running mechanism
  • High repeatability

FAST

  • Precise line markings by oscillating marking pin
  • Short marking times due to latest control technologies
  • Simple and fast operation of the pot peen marker through proven system program



Marking areas (x/y): 100 x 100 mm / 200 x 100 mm

required space of the table marking system: 342 x 515 mm

Available character heights: From 1,0 mm, continuously adjustable in 1/10-steps

Available characters: Capital and small letters A to Z, figures 0 to 9, various punctuation marks

Fonts: Standard, similar to DIN 1451 in a continous line or in single dot characters, size 5 x 7 and 9 x 13

Resolution of the stepping motors: 0,05 mm for a very high marking quality

Marking direction: Any, from 0° to 360°

Central control units

Here you will find the suitable central control units for this marking head.

MV5 ZE 301 XL MV5 ZE 401 XL
19" version: yes yes
Plug-in card slots: 2 4
Operation / Data input: Clavier USB Clavier en feuille
Interfaces: 3x USB-A, 1x USB-B, RJ45 2x USB-A, 1x USB-B, RJ45
IP54: no yes
Communication cards (optional): non PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)
Ethernet TCP/ IP (optional): yes yes
Preconfigured PLC function module, e.g. TIA (optional): no yes
Safety relay module (optional): yes yes

MV5 ZE 301 XL

19" version:
ja

Plug-in card slots:
2

Operation / Data input:
Clavier USB

Interfaces:
3x USB-A, 1x USB-B, RJ45

IP54:
nein

Communication cards (optional):
non

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
nein

Safety relay module (optional):
ja

MV5 ZE 401 XL

19" version:
ja

Plug-in card slots:
4

Operation / Data input:
Clavier en feuille

Interfaces:
2x USB-A, 1x USB-B, RJ45

IP54:
ja

Communication cards (optional):
PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
ja

Safety relay module (optional):
ja

Overview of all central control units
